Side Mount Load Cell Sensor 1kg-30kg Load Cell Buy Analog Output

Product Description:

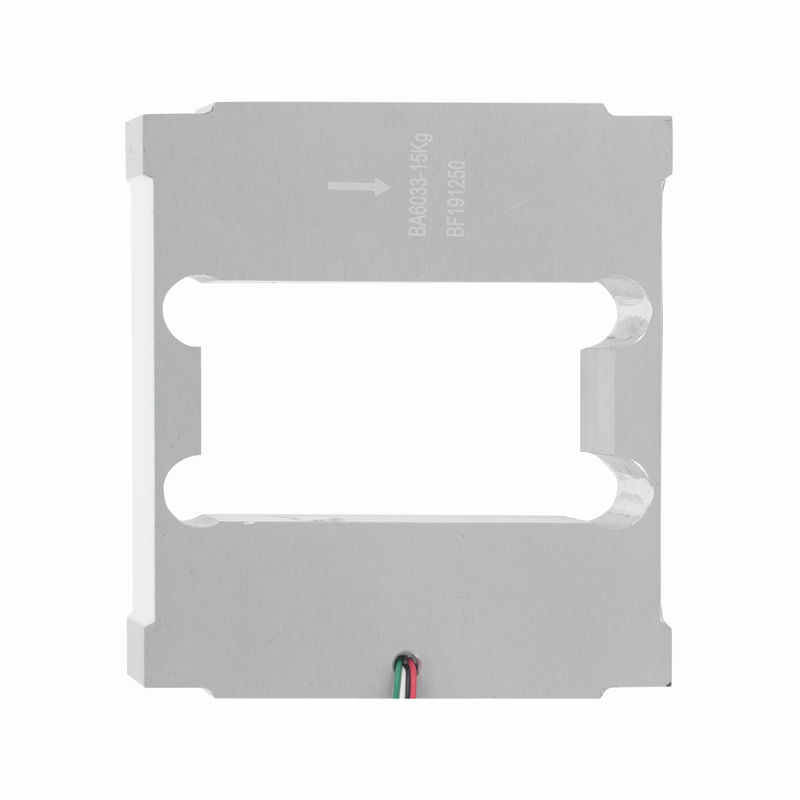

Side Mounted Single Point Load Cell For Load Weighing Use With High Stability From 1kg-30kg - WL-119

The Side Mounted Single Point Load Cell Sensor WL-118 is  based on strain gauge technology. Designed for OEM  applications, the sensor has a unique design that gives it its high accuracy and reliability. Three different dimensions of the sensor wl-119 allows for a variety of applications.For eaxample, the single point load cell of WL-119 is mostly utilized in food packaing machines,electronic scales and auto filling machines and so on. The capacity of weight sensor WL-118 ranges from 1kg-30kg, with platform sizes up to 200x200 mm.

Custom design service is available to meet requirements of different applications. At BRANS, we understand that every application is unique and requires a tailored solution. Our customized service allows us to modify our product to fit your specific needs, ensuring maximum accuracy and reliability. With our customized service, we aim to provide you with the best possible solution for your unique application.

Features:

• Side mounted ​Single point load cells
• Made of aluminum alloy
• Available in three different dimensions
• Load cell capacity range from 1kg to 30kg
• Accuracy class: C3; IP65 protection
• With compact structure,support dynamic weighing
• Maximum platform size:200*200mm
• Different cable lengths and other options available
• High stability and high accuracy for weighing applications

Technical Parameters:

Dimensions (Unit:mm):

                                            4/5/6/8/10/20/30kg

                                             1/2/3/5kg

                                                                     10/15/20/30kg

  Load direction:

Packing and Shipping:

The Single Point Load Cell will be carefully packaged and shipped to ensure its safe arrival to your location. The packaging process is as follows:

• The load cell will be placed in a sturdy cardboard box to protect it from any external damage during shipping.
• The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving around during transport.
• The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
• Additional layers of bubble wrap may be added for extra protection.
• The box will be securely sealed with tape to prevent any tampering.
• A shipping label with your address and the product information will be affixed to the box.
• The package will be shipped using a reliable and trusted courier service.

Once the package has been shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the shipping address to receive the package to avoid any delays or issues.
